ASRock B550 Motherboard AMD Ryzen AM4 Socket / A520 B450 A320

ASRock B550 Motherboard AMD Ryzen AM4 Socket / A520 B450 A320

ASRock B550 motherboard for compatible repair, rebuild or replacement work.

Model

• ASRock B550M WiFi SE.

AEPC quality: Carefully selected and core-function checked before dispatch. Most are sourced locally within New Zealand for dependable repair and replacement value.

Key Specifications

• Memory: 4 DDR4 DIMM slots, up to 128GB.
• Storage: 4 SATA 6Gb/s ports and 1 Hyper M.2 socket for compatible PCIe NVMe SSDs. M.2 generation and availability depend on the installed processor; this socket is not for SATA M.2 drives.
• Wireless connectivity: 802.11ac Wi-Fi and Bluetooth 4.2.
• The motherboard HDMI output requires a compatible processor with integrated graphics. CPU models without graphics require a separate graphics card.

Includes

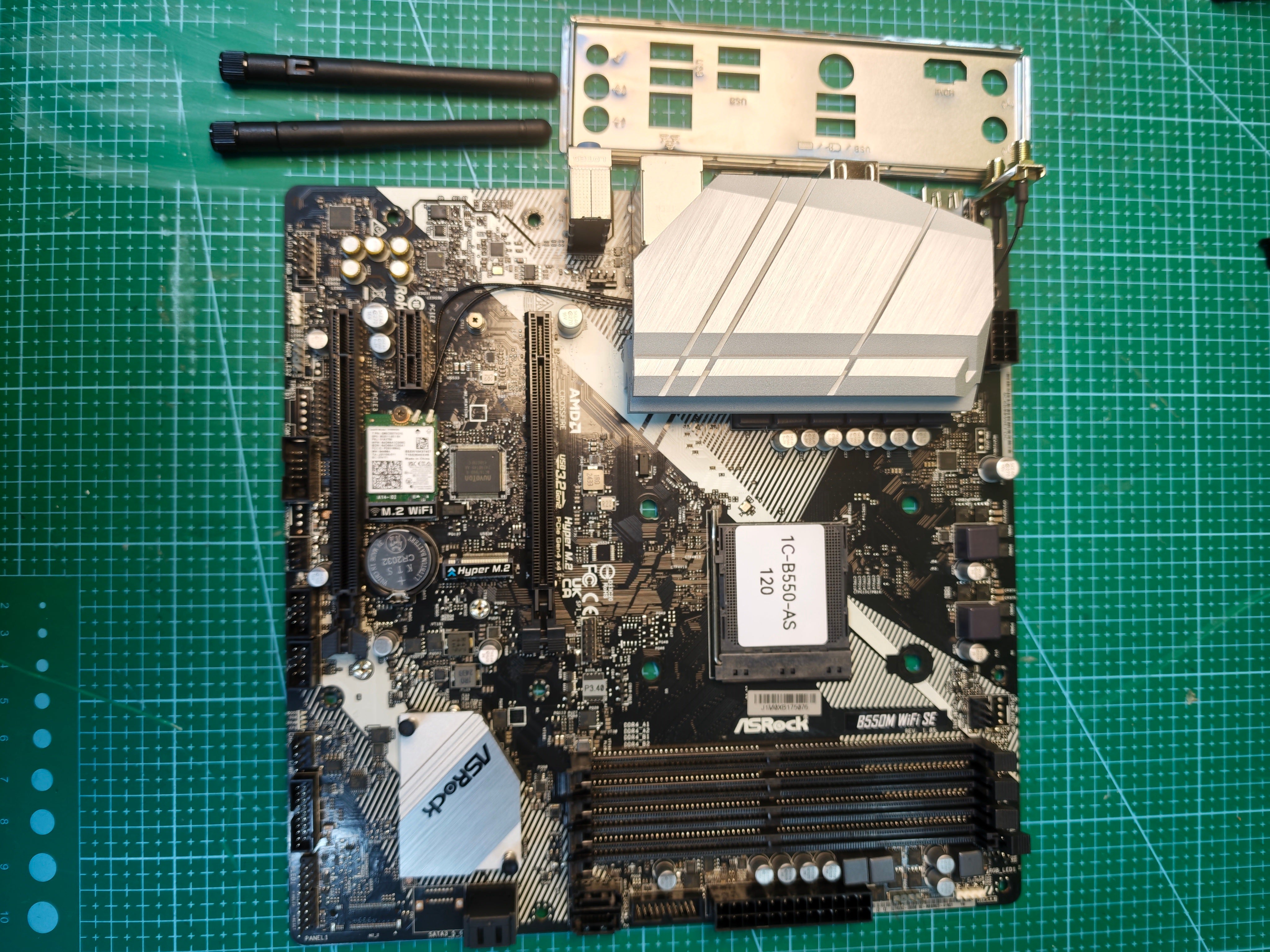

• 1 x ASRock B550M WiFi SE motherboard.

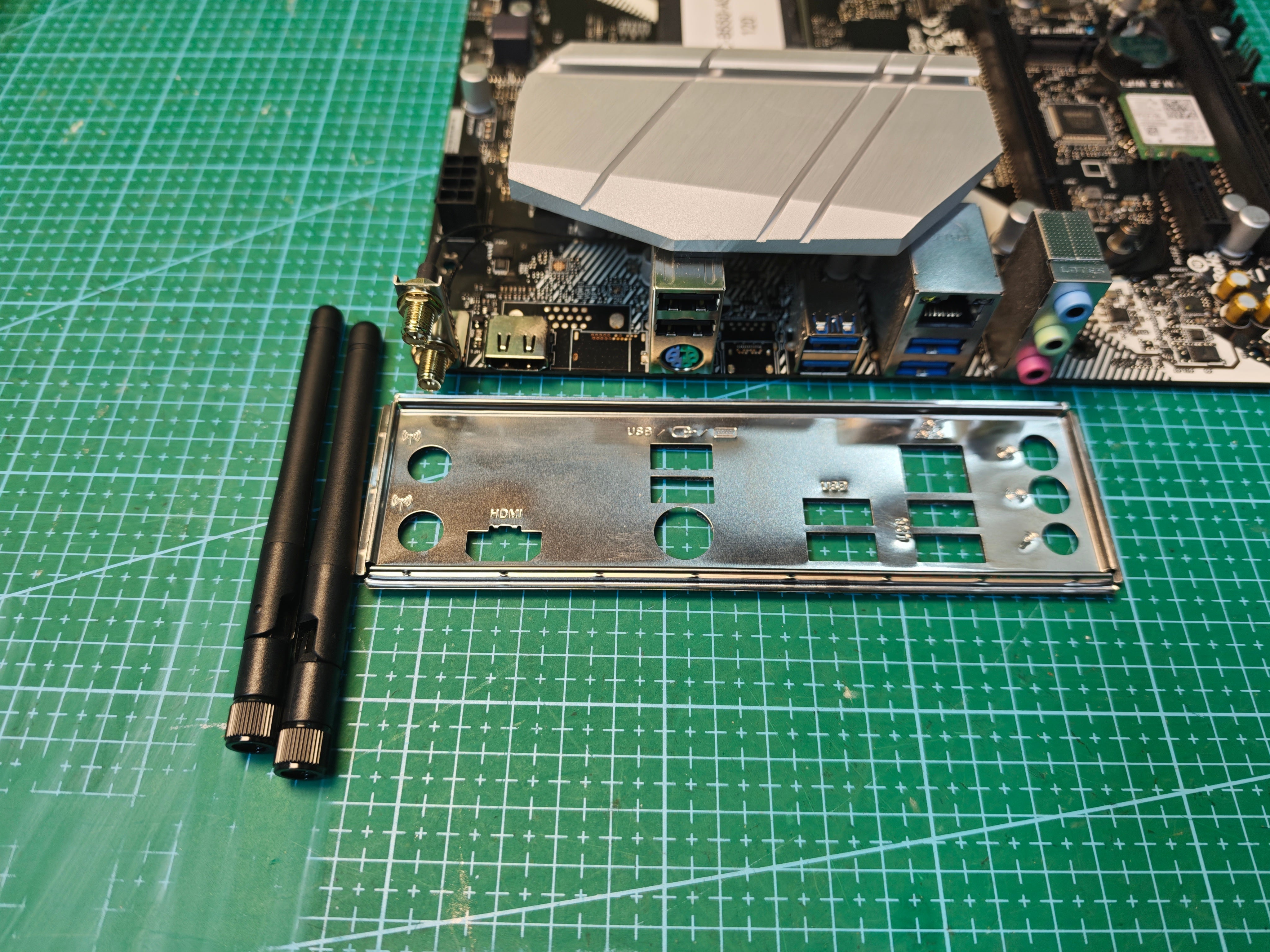

• 1 x matching I/O shield.
• 2 x Wi-Fi antennas.

Compatibility Guidance

• Platform: AMD AM4 Ryzen CPU support, subject to chipset and BIOS support.
• CPU compatibility: This ASRock B550 board uses AMD AM4, but support is determined by the exact CPU or APU model, PCB revision and installed BIOS. Confirm the full processor model against ASRock's CPU-support list before ordering.

Testing and Warranty

Basic core-function check only. 90-day return-to-base (RTB) warranty against functional defects.

Please Note

• Related chipset/platform terms: B550, A520, B450, A320. They are compatibility/search references, not a model-by-model guarantee.
• Match CPU support, BIOS version, RAM type, form factor, rear I/O layout and power connectors before purchase.

1C-B550-AS 120
